Product • 25.03.2009

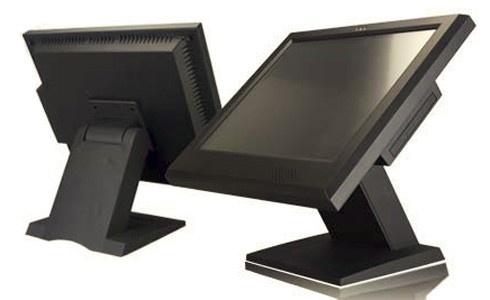

TFT touch screen industrial panel PC – EZPPC 719
Continuing to create more possibilities and edges for users, EBN Technology Corp. is proudly to present the 19'' large-size TFT touch screen industrial panel PC – EZPPC 719 series, which is designed to meet and satisfy demands from public service or industrial customers who request high performance, best reliability and durability as the first priority under extreme working conditions.
Ultra-slim robust housing
Durable die-casting aluminum-magnesium alloy chassis combining with Ultra slim design makes EZPPC 719 the new standard of industrial Panel PC. Featured with the robust die-casting aluminum-magnesium housing, EZPPC 719 can resist corrosion and impact damage from any high loaded crucial industry and public service environment. Ultra slim depth of chassis (65 mm only!) of EZPPC 719 offers most flexible installation options.
Smart battery backup & wireless connections
EZPPC 719 is equipped with “Smart Battery” (optional accessory) which is originated and introduced from laptop industry and unparalleled in IPC and POS industry. Beyond traditional and dull “battery backup”, EZPPC 719 detects and “communicates” with the onboard smart battery, and allows user to monitor and manage battery allocation depends on variable operation environments as the power management on notebook. The onboard smart battery can supply voltage to EZPPC 719 more than one hour without any external power supply and regulate the power supplied from wall outlet, and to extend the life time of EZPPC 719 to the maximum and reduce electronic failures to the minimum.With Mini-PCI interface onboard, EZPPC 719 can be connected to your intranet or internet without headachy cable management.
Ideal fanless system
Come with 19'' TFT 5-wire resistive touch screen, EZPPC 719 feature Intel Celeron M 1.5GHz CPU delivering high performance to meet most of requirements from current and future applications. Thanks for the Intel low power consumption technology, EZPPC 719 are the fanless system that users don't need to worry about the risk to changing system fan. By the large touch screen, EZPPC 719 its especially user-friendly interfaces that may be applied to diverse industrial computing platforms, ranging from factory and machine automations to point of information solutions.
Easy upgrade & maintenance
System upgrade is a simple job. EZPPC 719 adopts tool-free and modular design, everyone can assembly / disassembly EZPPC 719 without special tool. With 4 x USB 2.0, 4 x RS-232, cash drawer port (RJ-11) and Gigabit Ethernet port (RJ-45) onboard, EZPPC 719 has high extensibility to connect others peripherals and build your own unique system.
Support various application
With multiple optional installation accessories, EZPPC 719 can be installed in everywhere and meet every request from every application.
EZPPC 719 Series Features
- Intel® Celeon M 1.5GHz low power consumption CPU
- 19'' large size TFT LCD with 5-wire resistive touch function
- Tool-free and modular design - easy upgrade and assembly / disassembly
- Durable ultra slim & robust die-cast aluminum-magnesium housing
- Smart battery backup and Wireless LAN supported
- With rich I/O interface such as: 4 x USB 2.0,4x RS-232, Gigabit Ethernet port (RJ-45) and cash drawer port (RJ-11) to connect other peripherals, optional DVD combo (DVD reader + CD-RW) device
